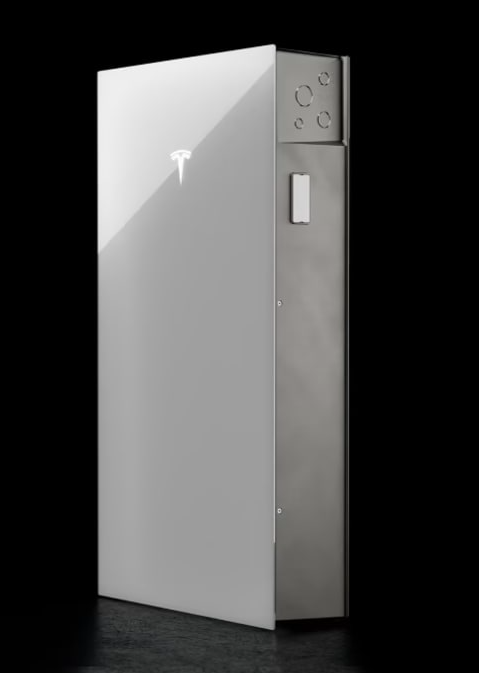

Powerwall 3 - TESLA Battery

Powerwall 3 – TESLA Battery

Tesla is advancing further into home energy solutions with the eagerly awaited introduction of the Powerwall 3, which aims to revolutionize sustainable home energy systems. The official information released highlights the impressive features and capabilities of this next-generation home battery.

Key Differences:

  • While maintaining the 13.5 kWh energy capacity of the Powerwall 2, the Powerwall 3 stands out with a significant upgrade in its power output. It can now deliver 11.5 kW of continuous power, compared to the 10 kW peak power provided by the Powerwall 2.

System Technical Specification


Model Number 1707000-xx-y
Nominal Grid Voltage (Input & Output) 120/240 VAC
Grid Type Split phase
Frequency 60 Hz
Overcurrent Protection Device 60 A
Surge Withstand Voltage on AC Ports 4 kV
Surge Withstand Voltage on Communication Ports 2 kV
Radiated RF Immunity 35 V/m
Solar to Battery to Grid Round Trip Efficiency 89%1,2
Solar to Grid Efficiency 97%3
Supported Islanding Devices Backup Gateway 2, Backup Switch, Gateway 3
Connectivity Wi-Fi (2.4 / 5 GHz), Dual-port switched Ethernet, Cellular (LTE/4G4)
Hardware Interface Dry contact relay, Rapid Shutdown (RSD) certified switch and 2-pin connector, RS-485 for meters
AC Metering Revenue Grade (+/- 0.5%)
Protections Integrated arc fault circuit interrupter (AFCI), Isolation Monitor Interrupter (IMI), PV Rapid Shutdown (RSD) using Tesla Mid-Circuit Interrupters
Customer Interface Tesla Mobile App
Warranty 10 years
